• for alignment of chain housing cover and for removing of high pressure pump sprocket
• during works on high pressure pump chain, for example
• tools are complementary for engine timing tool set (eg: TT-0007)

suitable for the following models:

• Focus 1.8 TDCi (2004 - 2011)
  • engine codes: KKDA, KKDB
• C-Max 1.8 TDCi (2003 - 2007)
  • engine codes: KKDA , BHPA, HCPA
• Tourneo Connect 1.8 TDCi (2002 - 2013)
  • engine codes: HCPA, HCPB (2002 - 2006), RWPA, R2PA, P7PA, P9PA, R3PA (2006-2013), P9PB, RWPC (2009 - 2013)
• Tourneo Connect 1.8 TDdi (2002 - 2006)
  • engine code: BHPA
• Mondeo 1.8 TDCi (2007 - 2010)
  • engine codes: FFBA, QYBA, KHBA
• Mondeo 1.8 TDCi ECOnetic (2008 - 2010)
  • engine code: KHBA
• Transit Connect 1.8 TDCi (2002 - 2013)
  • engine codes: HCPA, HCPB (2002 - 2006), RWPA, P7PA, R2PA, P9PA, R3PA (2006 - 2013), P9PB, RWPC (2009 - 2013)
• Transit Connect 1.8 TDdi (2002 - 2006)
  • engine code: BHPA

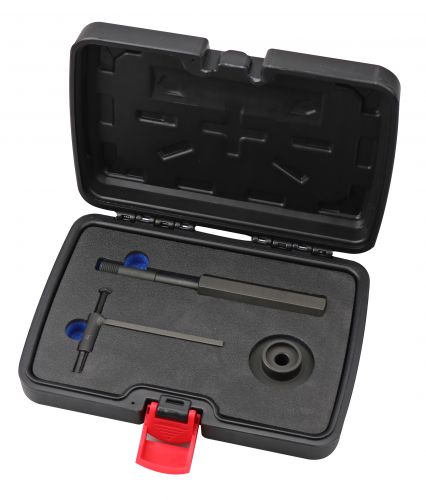

Box contents

• chain housing cover alignment tool, to be used as OEM 303-652 (21-230)
• high pressure pump sprocket disassembly tool, to be used as OEM 303-095 (23-067)
